Flexible Side Wall Belt Conveyors

BW Sinclair Flexible Sidewall Belt Conveyors provide an efficient way to convey and elevate bulk materials in a single system.

Designed for steep inclines up to 90 degrees, these conveyors maximize available floor space while reducing the need for multiple drives, structures, and transfer points. Fewer components can also mean lower maintenance costs and a more efficient use of investment capital.

Systems can be equipped with dust or weather enclosures, manual or gravity belt tensioning, and custom coatings to meet specific application requirements.

Each BW Sinclair Flexible Sidewall Conveyor is custom designed and fabricated for dependable performance, durability, and ease of maintenance.

Request a Quote

Common Flexible Sidewall Configurations

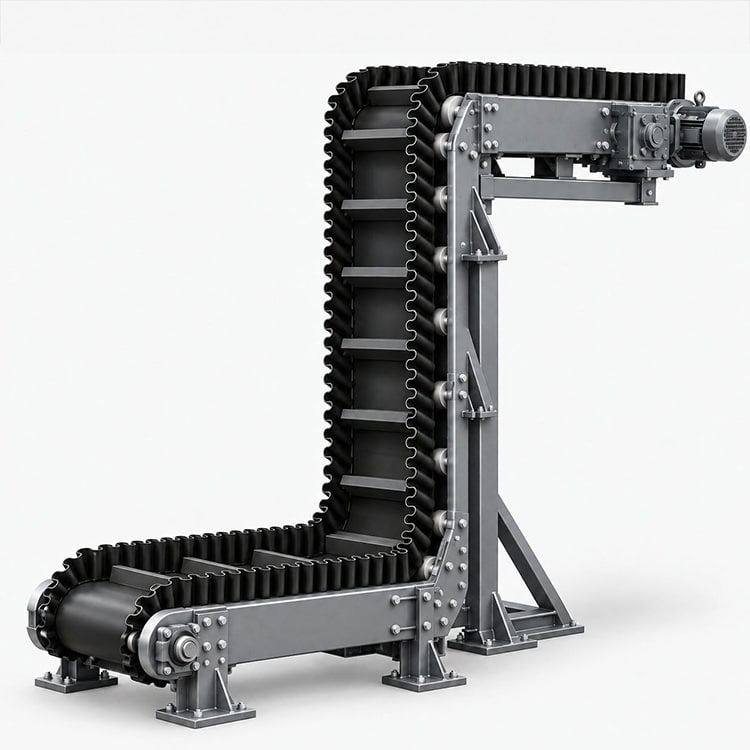

Z Flow

Z Flow flexible sidewall conveyors combine horizontal loading, steep incline conveying up to and including 90 degrees, and horizontal discharge in one continuous belt. This configuration is ideal when material must be elevated while maintaining controlled transfer points and maximizing available floor space.

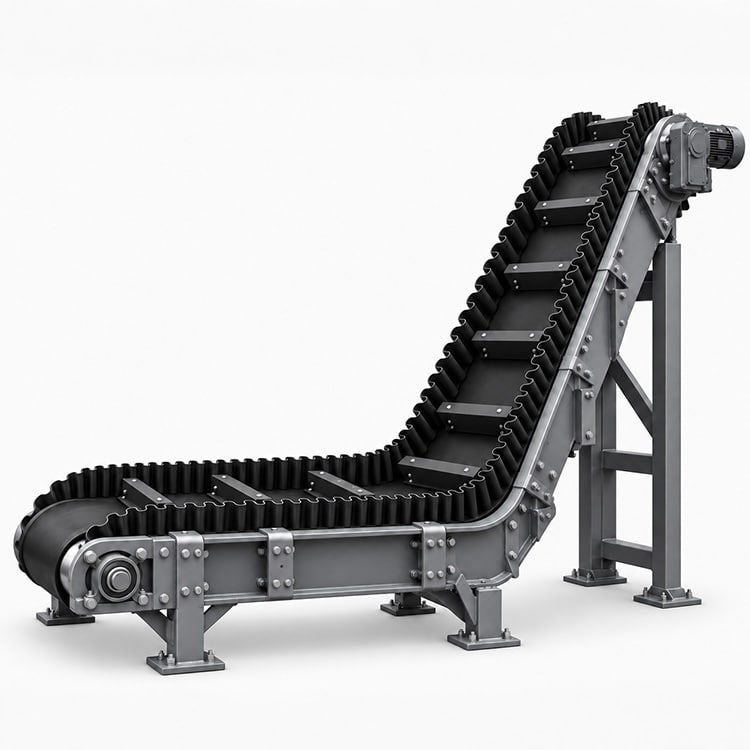

Lazy L

Lazy L conveyors provide a horizontal loading section that transitions into an inclined or steep-angle conveying section. They are well suited for applications where material needs to be collected at floor level and elevated to a higher discharge point with a compact footprint.

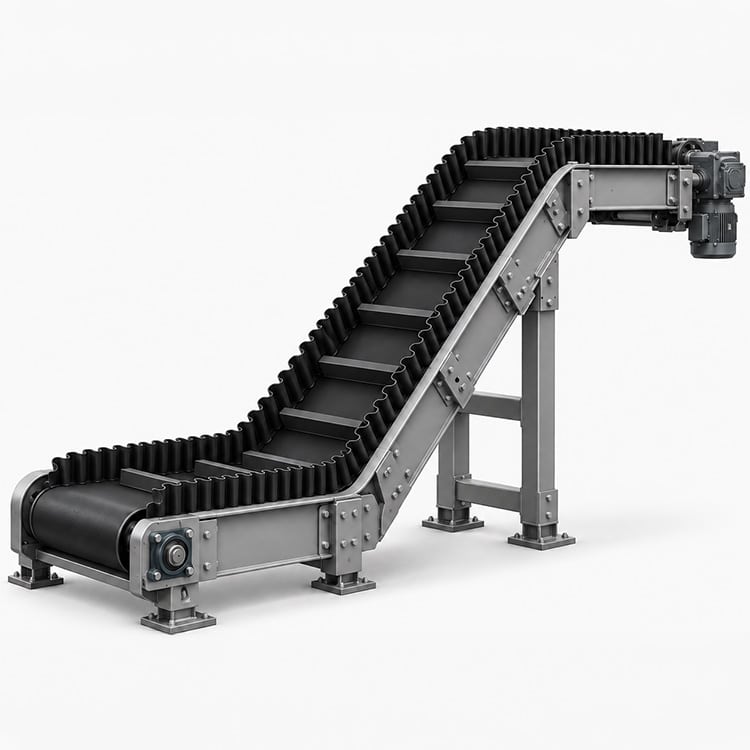

Lazy Z

Lazy Z conveyors feature a horizontal loading section, an inclined conveying section, and a horizontal discharge section. This versatile arrangement allows material to be elevated and transferred smoothly into downstream equipment while fitting efficiently into tight plant layouts.

Features, Specifications & Downloads

PRODUCT SPECIFICATIONS
CONFIGURATIONS	Flexible design to convey and lift with only one drive unit, incline up to 90 degrees. Totally enclosed or weather hoods. Up to 300 degrees F.
BELTS	Many belting options for your specific application
CONSTRUCTION MATERIALS	Carbon steel or stainless (304, 316). Options for abrasion resistance liners.
CUSTOM ENGINEERING	Precision fitted cam-lock access doors for secure sealing, easy maintenance, and dependable operation. Easy access vulcanizing door. Manual take-up to adjust tension. Multiple belt scrapers available.
